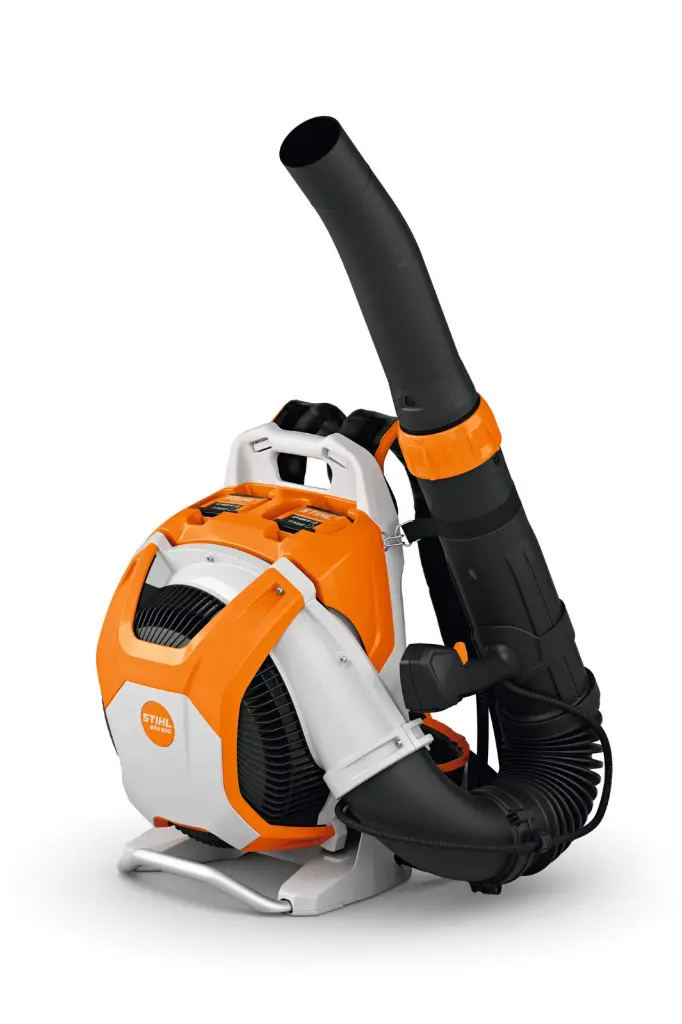

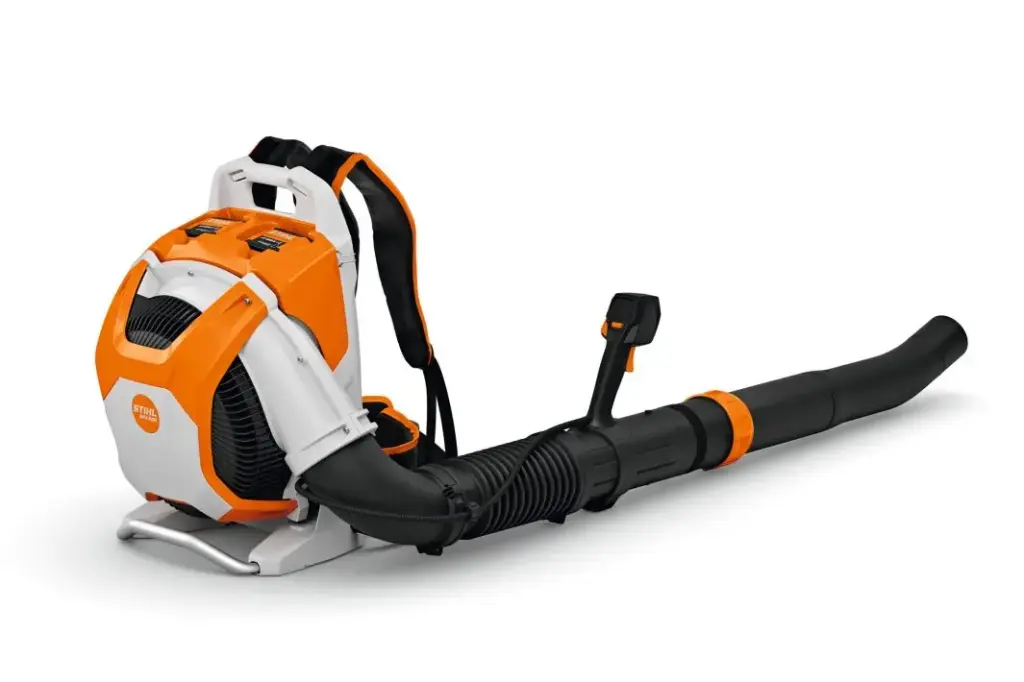

STIHL BA070115900 BRA 500 Cordless Backpack Blower - AP System tool only
Technical details
| Rated voltage | 72 V |
| Battery system | AP |
| Recommended battery | AP 500 S |
| Blowing force with round nozzle | 32 N 1) |
| Device weight without battery | 10.5 kg |
| IPX Rating | IPX4 |
| Max. air velocity with round nozzle | 109 m/s |
| Air throughput with round nozzle | 1440 m³/h |
| Min. battery working time AP 200 | 12 min 2) |
| Max. battery working time AP 200 | 21 min 2) |
| Min. battery working time AP 200 S | 13 min 2) |
| Max. battery working time AP 200 S | 22 min 2) |
| Min. battery working time AP 300 | 13 min 2) |
| Max. battery working time AP 300 | 26 min 2) |
| Min. battery working time AP 300 S | 16 min 2) |
| Max. battery working time AP 300 S | 32 min 2) |
| Min. battery working time AP 500 S | 20 min 2) |
| Max. battery working time AP 500 S | 39 min 2) |
| Sound pressure level | 84 dB(A) 3) |
| Sound pressure level 15 m distance | 64 dB(A) 4) |
| Sound power level | 94 dB(A) 3) |
| Vibration level, right | 0.2 m/s² 5) |
BRA 500 Cordless Backpack Blower: Professional blower with powerful blowing force
The BRA 500 is a battery-powered backpack leaf blower that has been designed with professionals in mind. Capable of taking on the toughest clearing jobs you may face during the working day, it’s part of the AP System of battery tools and uses the power of 2 AP batteries for its 72 volt motor – resulting in an extremely powerful maximum blowing force of 32 newtons; the equivalent of the BR 600 petrol professional backpack blower.
The BRA 500 is ideal for the most demanding cleaning jobs, such as clearing large areas in parks, as well as in fields, paths, streets. It’s high blowing force means it can blow heavy and wet leaves, grass and hedge trimmings or rubbish with ease too. Like with all STIHL AP System tools, the BRA 500 has constant power output – meaning it maintains its high power output throughout the whole charge of the battery.
Whilst the backpack leaf blower has a weight of 14.5 kg with two AP 500 S batteries inserted, it has excellent weight distribution. This is due to the positioning of the batteries and the motor which are snugly against the operators back. This design is much improved compared to the petrol backpack leaf blower design, where the engine is exterior to the fan wheel – this all results in a more comfortable experience for use over long working periods. The carrying system of the BRA 500 is extremely comfortable to wear too thanks to the shoulder and weight padding (the same padding that is used on the BR 800 petrol backpack leaf blower).
STIHL’s innovative noise reduction system is built into the BRA 500 too. This reduces the high frequency noises due to the low fan RPM and noise insulation on the leaf blower. It makes using the BRA 500 around schools, parks or public spaces more pleasant for bystanders.
An aluminium tube at the base of the BRA 500 means carrying the blower to and from the work vehicle is even easier. It also helps to increase the durability of the machine during transport. It also has a built-in electronic interface on the control handle which lets you control the speed of the leaf blower between Low, Mid, High and Boost modes. It also shows useful information such as the battery charge, the ability to switch to cruise control, check the connectivity and show basic diagnosis information. The BRA 500 has STIHL Connected built into the machine – find out more about STIHL Connected functionality here.
The BRA 500 cannot be used with one battery and must be used with two AP batteries. For the longest working time we recommend using the leaf blower with two AP 500 S batteries.
| 2x AP 500 S | Low | Mid | High | Boost |
| Newtons (N) | 20 | 23 | 26 | 32 |
| Working time (mins) | 39 | 31 | 25 | 20 |
